HELIIR 25C-610

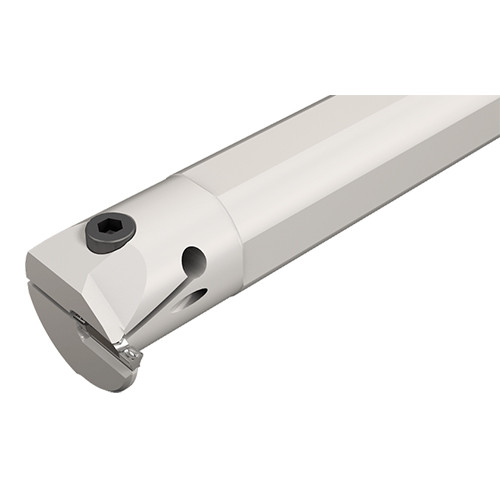

Grooving and turning bars with coolant holes for HELI-GRIP utility inserts
Price: Log in For Price

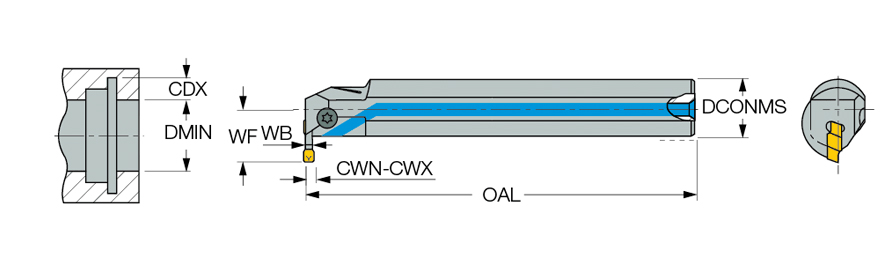

| Cutting Width Minimum (CWN) | 6 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Width Maximum (CWX) | 6.35 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 10 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 43 mm | Body Material | Steel |
| Functional Width (WF) | 22.7 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 160 mm | Measurement Type | Metric |
Product Features
| Family Description | Grooving and turning bars with coolant holes for HELI-GRIP utility inserts | Country of Origin | Israel |
| Remarks | DO-GRIP DGN inserts may be used only for grooving: DGN 4.. (Dmin=51 mm), DGN 5.. (Dmin=57 mm) and DGN 6.. (Dmin=62 mm). |
Shipping Info
Package Weight
1.146
