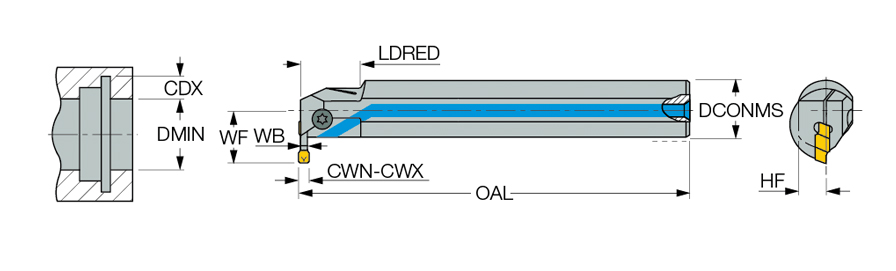

| Cutting Width Minimum (CWN) | 0.189″ | Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Width Maximum (CWX) | 0.252″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.472″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 2.08″ | Body Material | Steel |
| Functional Width (WF) | 1.23″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 10″ | Measurement Type | Inch |
Product Features

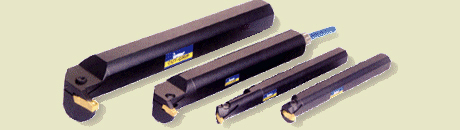

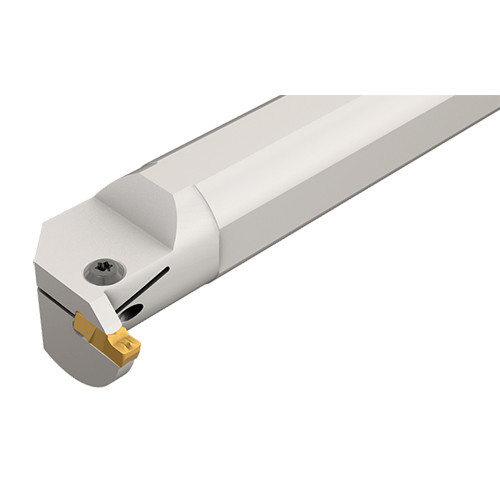

| Family Description | Grooving and turning boring bars with coolant holes. | Country of Origin | Israel |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
LocalField10
0
Package Weight
4.301
Related Documentation
Single-ended inserts GMP for minimum bore diameter 12.5 mm, and double-ended GIPI for minimum bore diameter 20 mm. Available also with internal coolant for improved chip flow and tool life.
