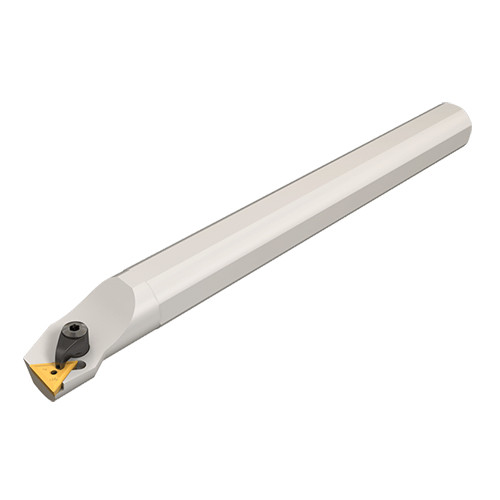

S32T CTFPR-16
Clamp lock boring bars carrying 11° clearance triangular inserts.
Price: Log in For Price

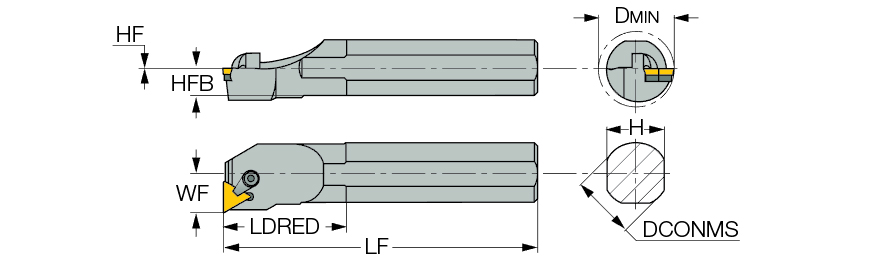

| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 300 mm | Application | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 62 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 29 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMR 1603 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Clamp lock boring bars carrying 11° clearance triangular inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
3.772
