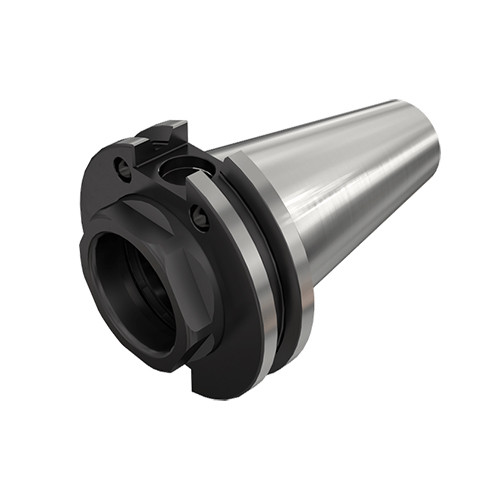

CAT50 ER40 SHORT
SHORTIN, DIN 6499 ER short collet chucks with Caterpillar form AD tapered shanks.
Price: Log in For Price
| Shank Size (SS) | 50 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Body Diameter (BD) | 1.969″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |

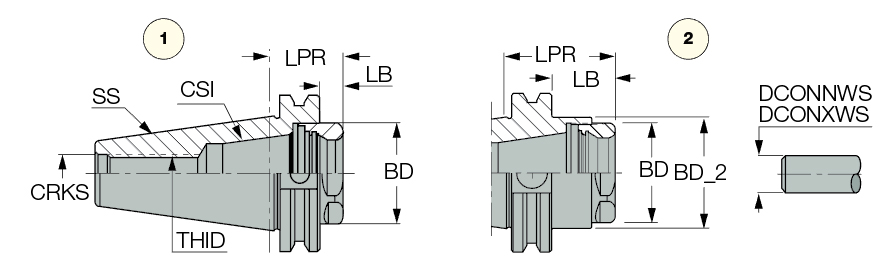

| Protruding Length (LPR) | 1.124″ | Figure | 1 |
| Connection Diameter Machine Side (DCONMS) | 50″ | Measurement Type | Inch |
| Tool Type | DIN 69871 | Body Material | Steel |
| Style | ER40 | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | SHORTIN, DIN 6499 ER short collet chucks with Caterpillar form AD tapered shanks. | Country of Origin | Turkey |
| Remarks | Toolholders according to Fig 1 can be used only on vertical machines with an umbrella type ATC (cannot be used with arm type ATC). |
Shipping Info
Package Weight
5.300
