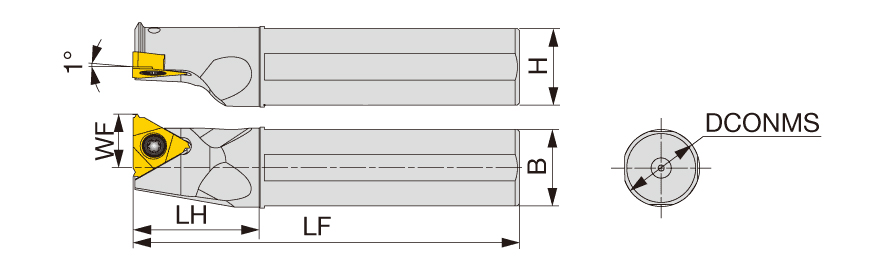

| Connection Diameter Machine Side (DCONMS) | 1″ | Functional Width (WF) | 0.618″ |
| Head Length (LH) | 1.181″ | Master Insert Identification (MIID) | 16ERA60 |
| Overall Length (OAL) | 4.724″ | Body Material | Steel |
| Shank Height (H) | 0.945″ | Tool Type | External Non-Rotating Threading Tools |
| Shank Width (B) | 0.945″ | Cutting Depth Maximum (CDX) | 4.724″ |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Application | | Ext Threading | |
Product Features

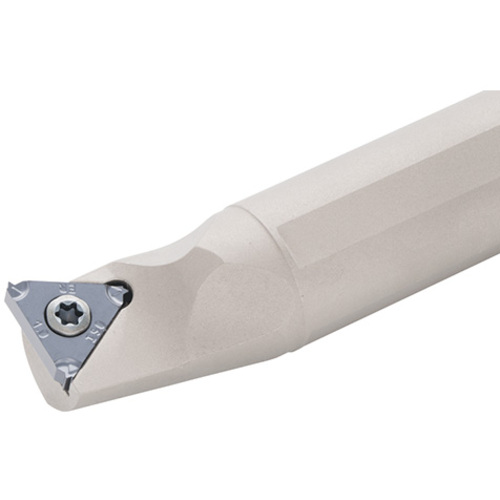

| Family Description | External threading round toolholders for swiss-type lathe | Country of Origin | JAPAN |
| Remarks | The right hand insert (**ER...) is used for the left hand toolholders (JS*** SEL...). |
Shipping Info
Package Weight
0.981
