RSL-40-16-L76
Milling Chuck Sleeve ; 16 mm Hole Dia. ; 40 mm Shank Dia. ; 76 mm OAL ; 50 mm Body Dia.
Price: Log in For Price

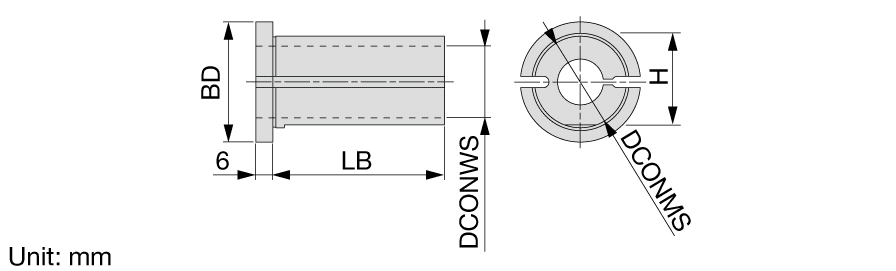

| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Accessories | |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Measurement Type | Metric |
| Body Diameter (BD) | 50 mm | Body Material | Steel |
| Overall Length (OAL) | 76 mm |
Product Features
| Family Description | Split sleeve for anti-vibration bar | Country of Origin | SOUTH KOREA |

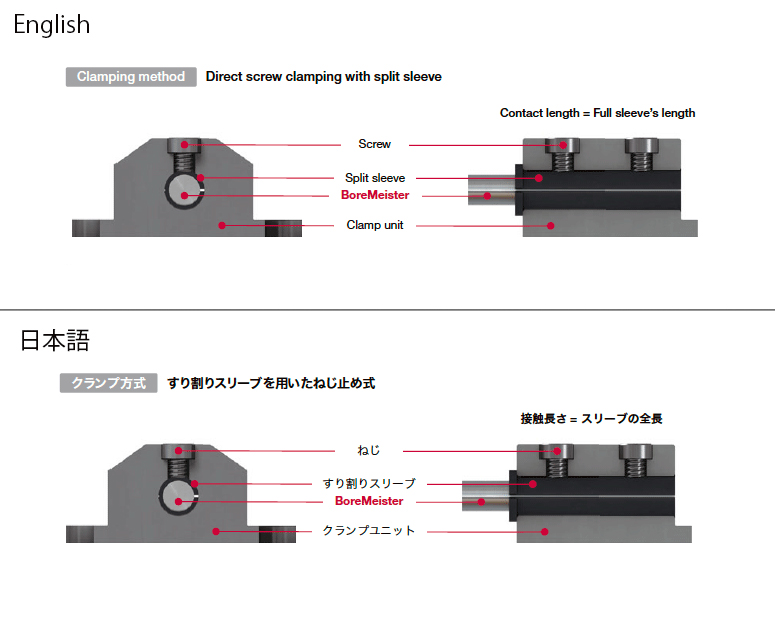

| Remarks | Note: When assembling a BoreMeister in a split sleeve, be aware that, depending on the clamp unit, the protruding bar end of the BoreMeister may interfere with the machine. |
Shipping Info
Package Weight
0.000
