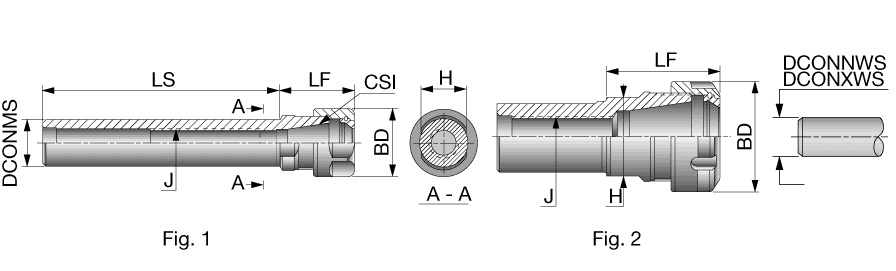

| Shank Size (SS) | 16. | Application | | Straight shape | |
| Connection Size (CSI) | ER11 | Tool Type | Cylindrical Shanks |
| Body Diameter (BD) | 19 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Shank Length (LS) | 50 mm | Measurement Type | Metric |
| Functional Length (LF) | 18.5 mm | Body Material | Steel |
Product Features

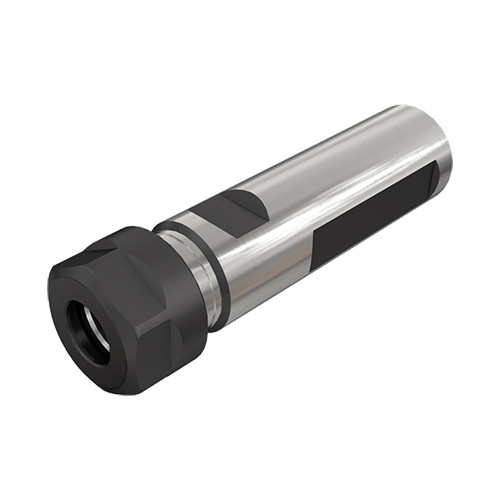

| Family Description | ER collet chucks with Straight shank | Country of Origin | ISRAEL |
| Remarks | F indicates a flat on the shank. |
Shipping Info
Package Weight
0.000
