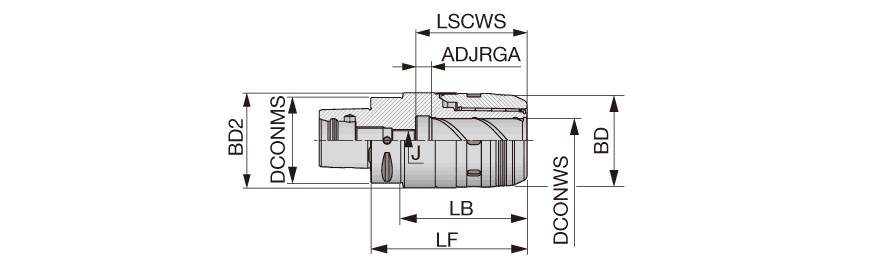

| Connection Diameter Machine Side (DCONMS) | 80 mm | Shank Size (SS) | 80. |
| Body Diameter (BD) | 51 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 65 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Overall Length (OAL) | 95 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Thread Designation Inside (THID) | M16 |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | Body Material | Steel |
| Application | | Face contact interface | |
Product Features

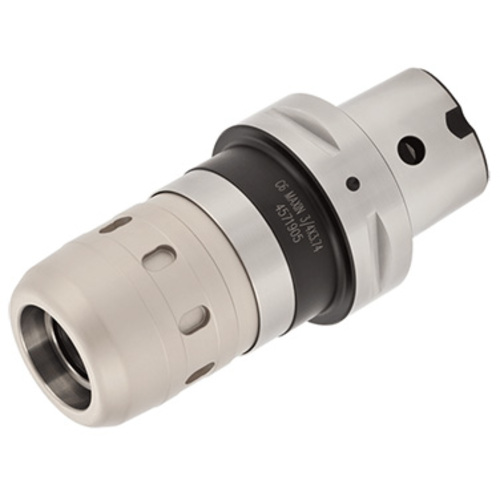

| Family Description | TungCap power chuck holders | Country of Origin | Israel |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included. |
