AVC-D40-PTLNR-16

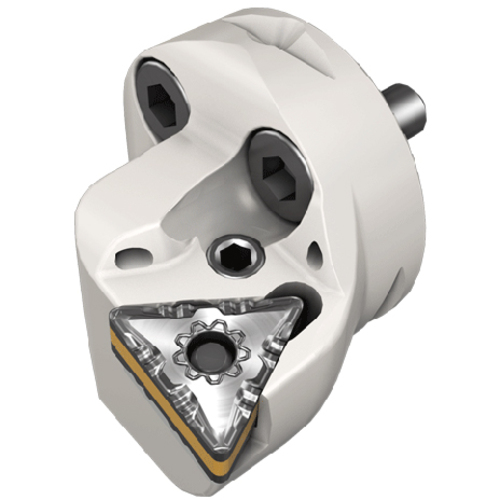

Interchangeable Boring Heads Carrying 60° Triangular Inserts
Price: Log in For Price

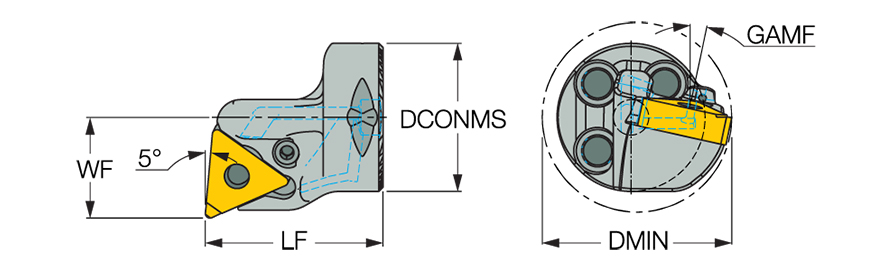

| Functional Length (LF) | 1.378″ | Application | | Int. 60° Triangle 95° Approach | |
| Functional Width (WF) | 1.063″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.968″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Interchangeable Boring Heads Carrying 60° Triangular Inserts | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
223
