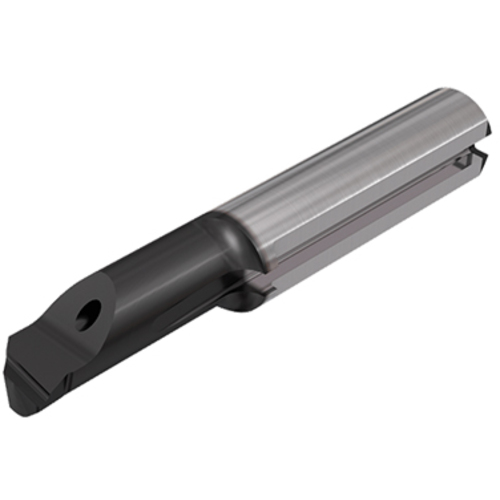

PICJ RT20D60R15-22C IC908
PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling
Price: Log in For Price

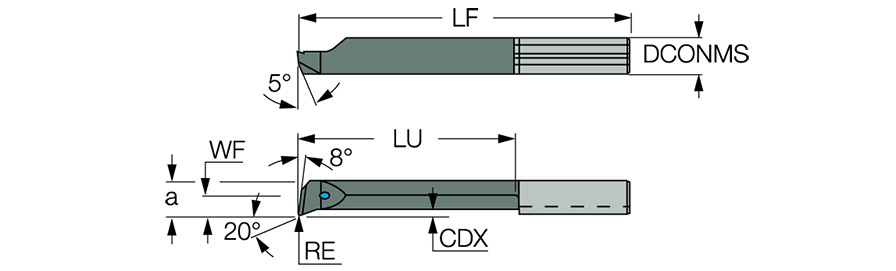

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Front End Width (a) | 0.209″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Corner Radius (RE) | 0.0059″ |
| Functional Length (LF) | 1.457″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 0.091″ |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
Product Features
| Family Description | PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling | Country of Origin | Israel |
| Remarks | All left-hand inserts on request PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Additional Fees and Notes
0
Package Weight
14
