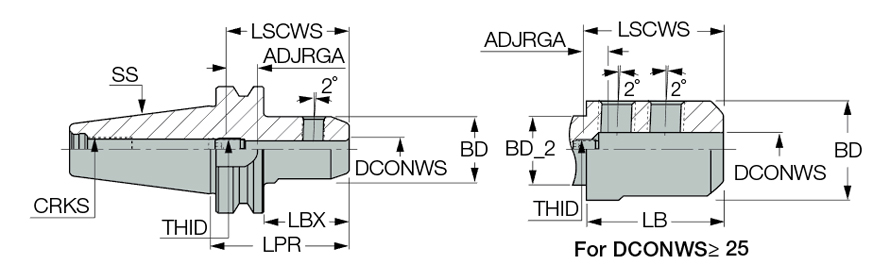

| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 105 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 78 mm | Tool Type | BT |
| Body Diameter (BD) | 65 mm | Measurement Type | Metric |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Application | CAT50 | Connection Code Machine Side (CCMS) | BT |
Product Features

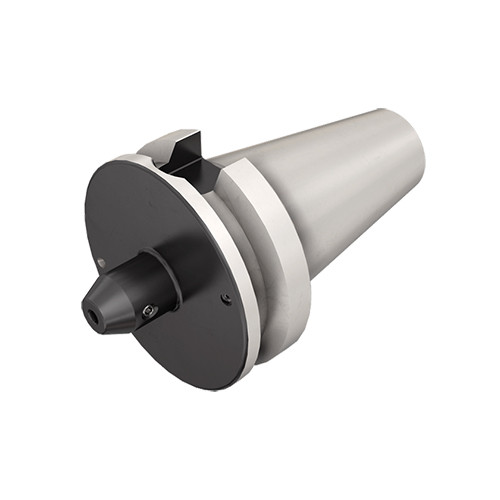

| Family Description | DIN6359 / DIN 1835 form E drill holders with BT MAS-403 AD tapered shanks. | Country of Origin | Turkey |

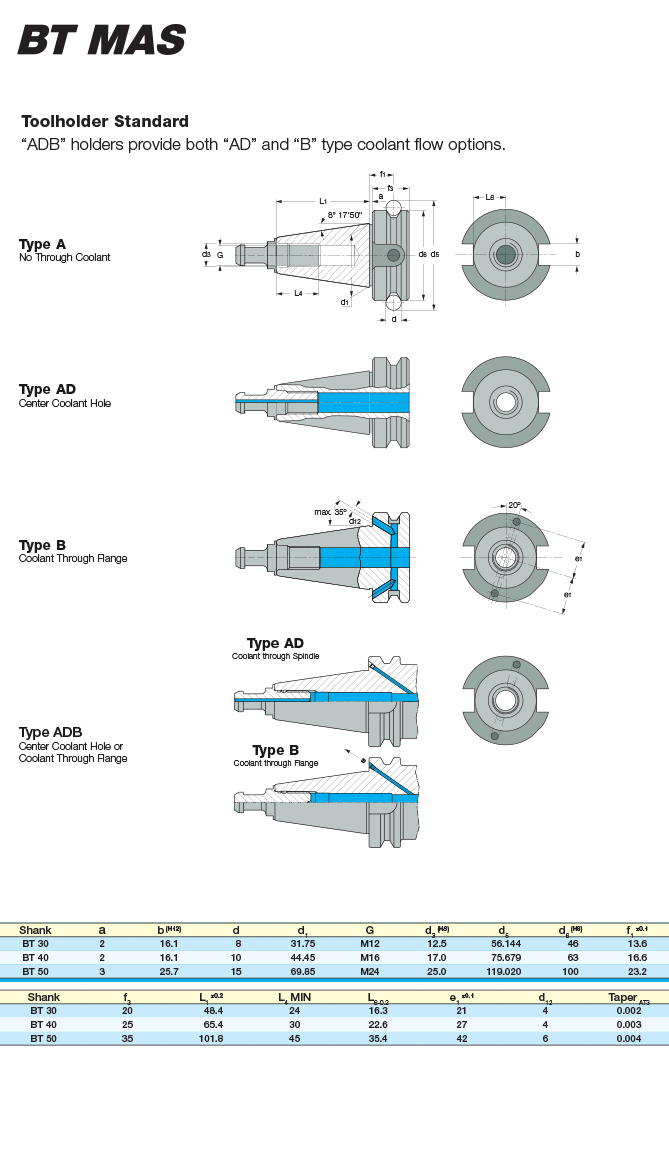

| Remarks | B is the designation for coolant through flange. |
Shipping Info
Additional Fees and Notes
0
Package Weight
5.756
