H690 TNKX 100504PNTR IC830

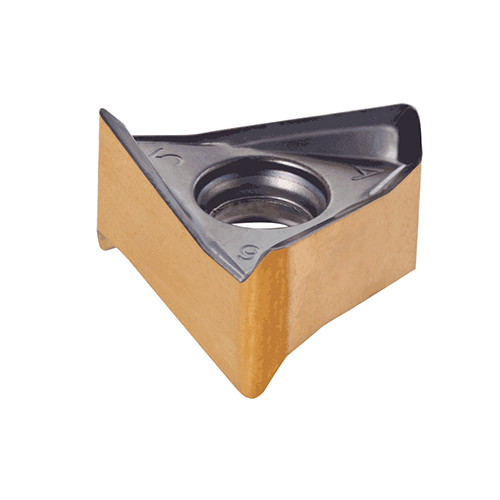

Triangular inserts with 6 helical cutting edges for 90° general use applications.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Triangle |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

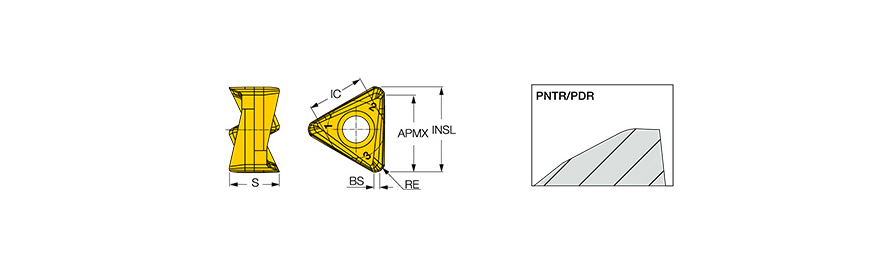

| Insert Length (INSL) | 0.334″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.185″ | Number of Cutting Edges | 6 |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Effective Length (LE) | 0.315″ |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Triangular inserts with 6 helical cutting edges for 90° general use applications. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
3.87700
Package Width
1.57600
Package Height
.50000
Package Weight
0.006
