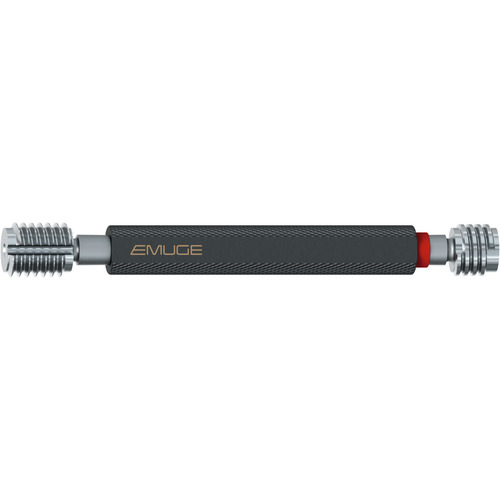

| Type | Thread Plug Gage with Handle | Classification | 6H |
| Go / No Go | Go/No Go | Certification | Short form certificate included |
| Thread Size | M2.2x0.45 | Single or Double End | Double End |
| Thread Type | Metric | Dimension Standards | DIN 2280 |
| Pitch | 0.45 |
Product Features
| Remarks | • A cleansing channel is ground into the GO side to eliminate thread damage from dirt and grime.
• Reduced thread start diameter construction for easy insertion | Country of Origin | Germany |
Shipping Info
Package Weight
0.0132
