DR1500-6000-150-12-4D-N

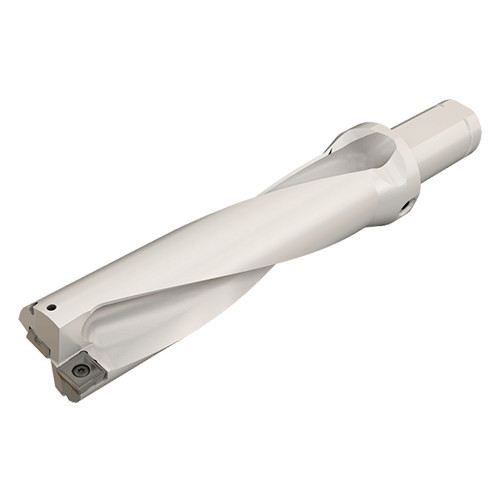

DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
Price: Log in For Price
| Cutting Diameter (DC) | 1-1/2″ | Overall Length (OAL) | 10.46″ |
| Usable Length (LU) | 6″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 1.65″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Flange Diameter (DF) | 1.99″ |
| Shank Size (SS) | 1″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 12 |
| Protruding Length (LPR) | 7.46″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 1.5″ |
| Functional Length (LF) | 7.415″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD. | Country of Origin | Israel |
| Remarks | Hole tolerance D+.014/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
LocalField10
0
Package Weight
3.732
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
