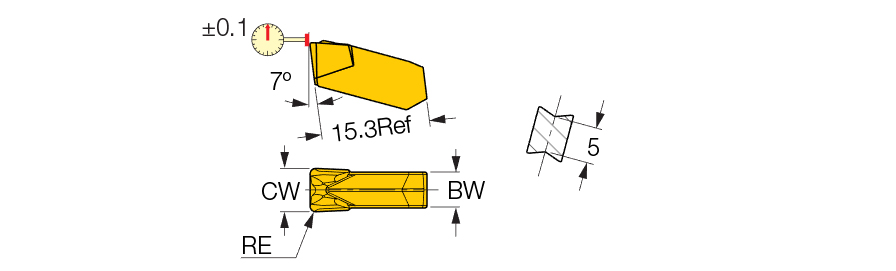

| Cutting Width (CW) | 5 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Coating | AlTiN+TiN | Measurement Type | Metric |
| Grade | IC830 | Threads per Inch (TPI) | 8 |
| Shape | Parrallelogram | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.401″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | | Height | 0.344″ |
Product Features

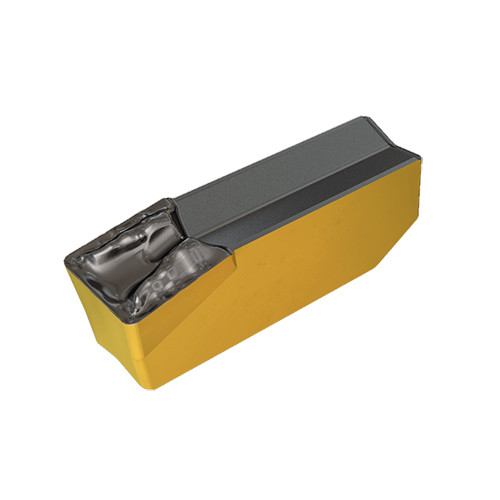

| Family Description | Utility single ended grooving and turning inserts with a chipformer optimized for grooving, partial grooving, turning and finish turning. Used for deep machining at low to medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal applications = 70 mm |
Shipping Info
Package Weight
0.014
